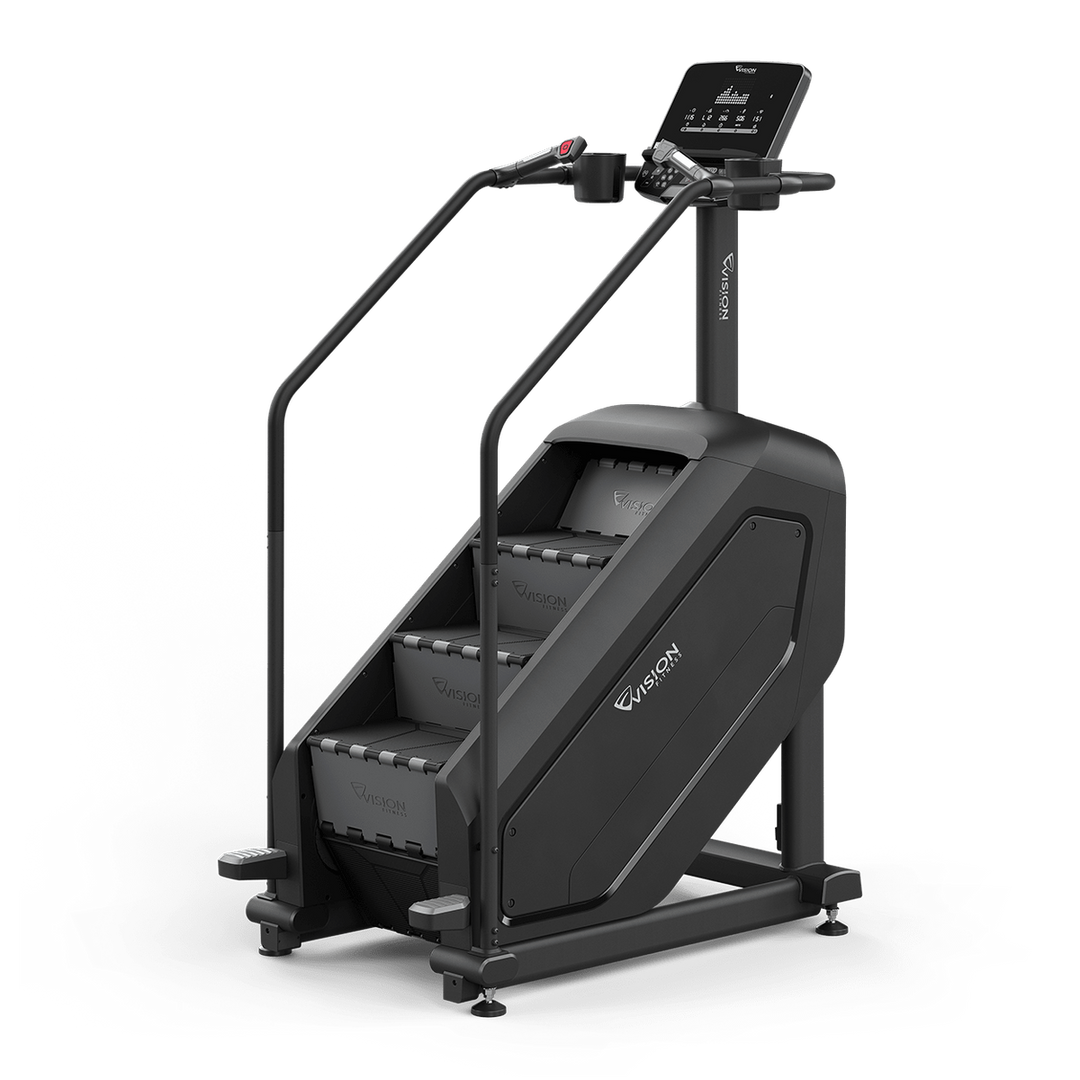

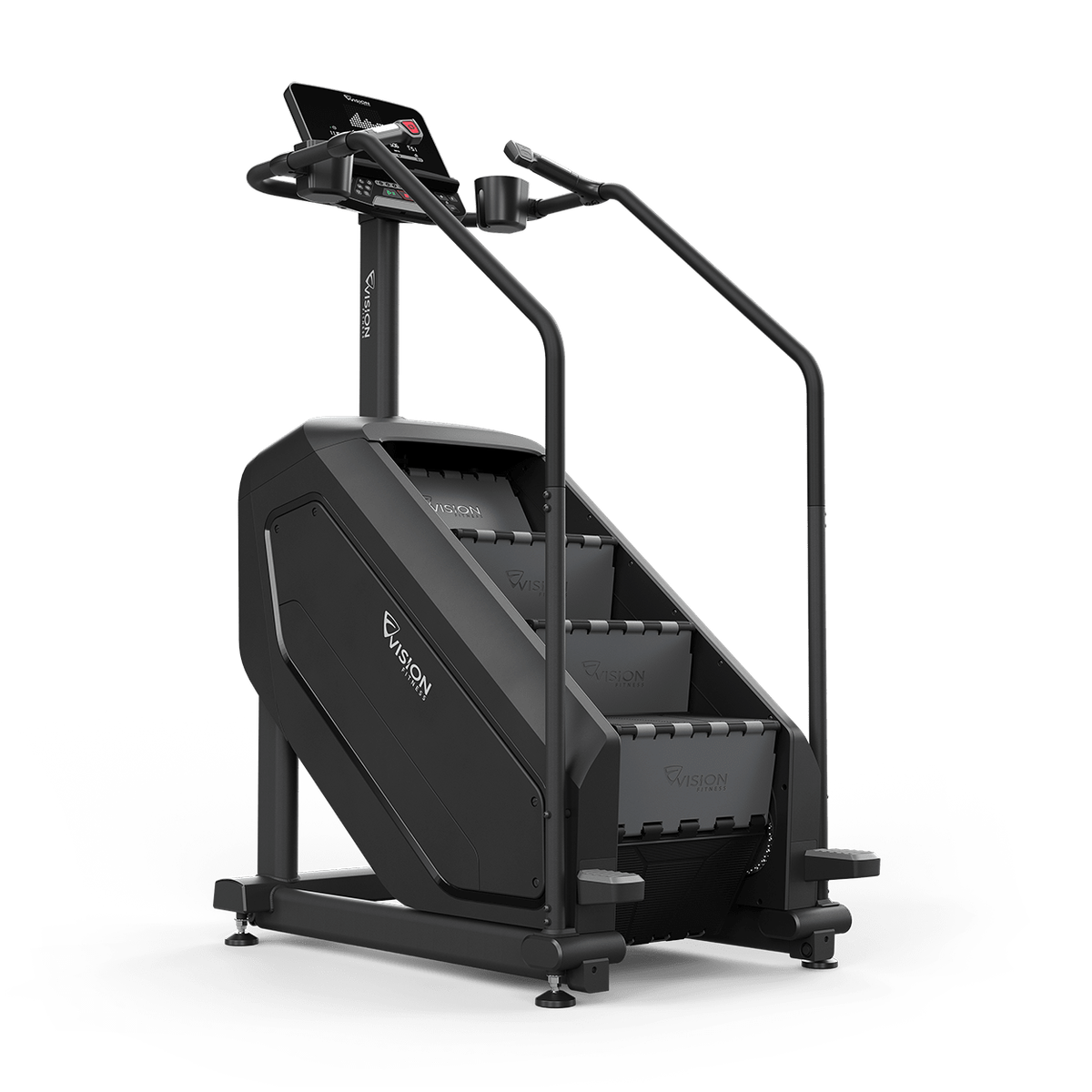

Vision Fitness Summit Stairclimber – front 3/4 view of the commercial stair climber

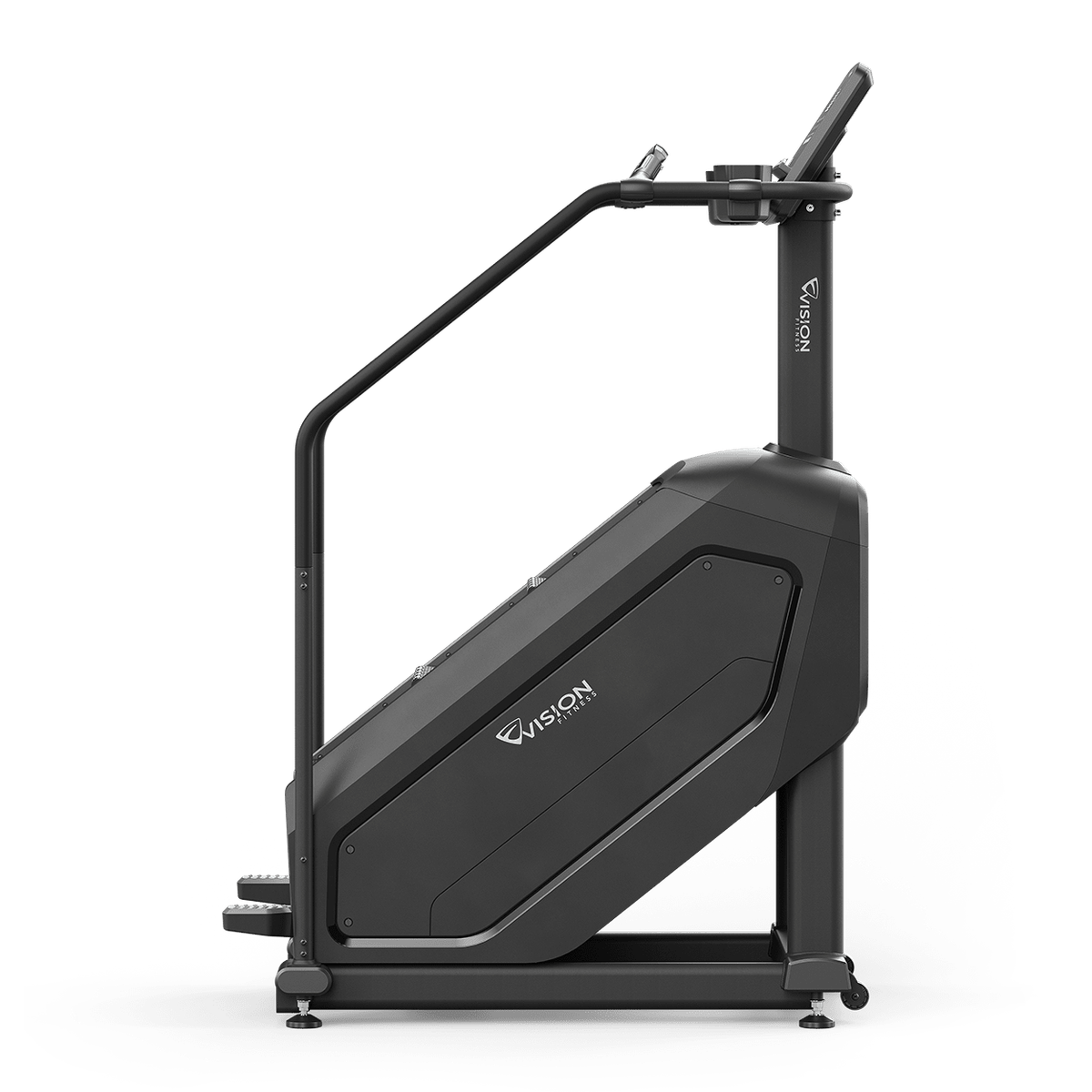

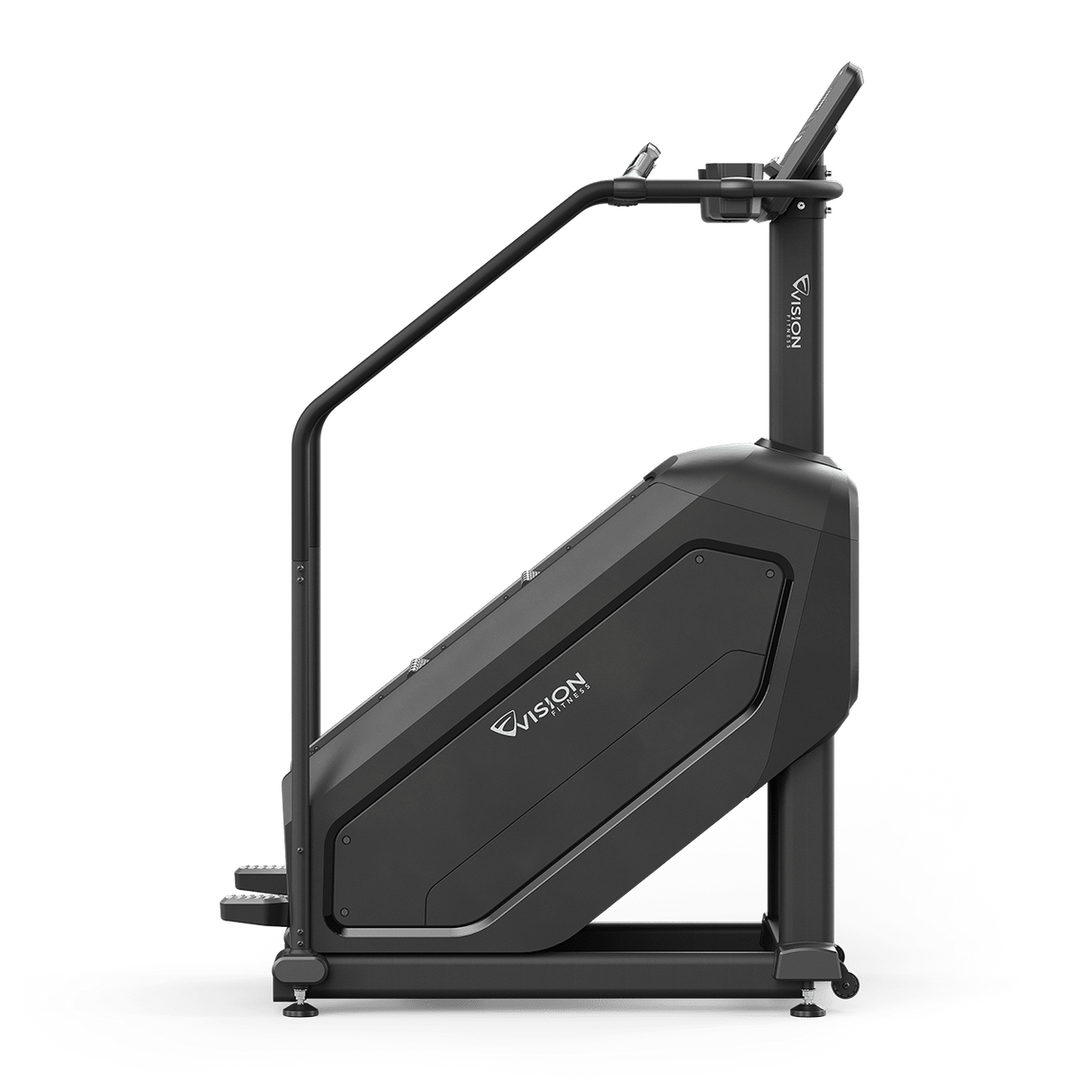

Vision Fitness Summit Stairclimber – side profile showing the stair angle and handrails

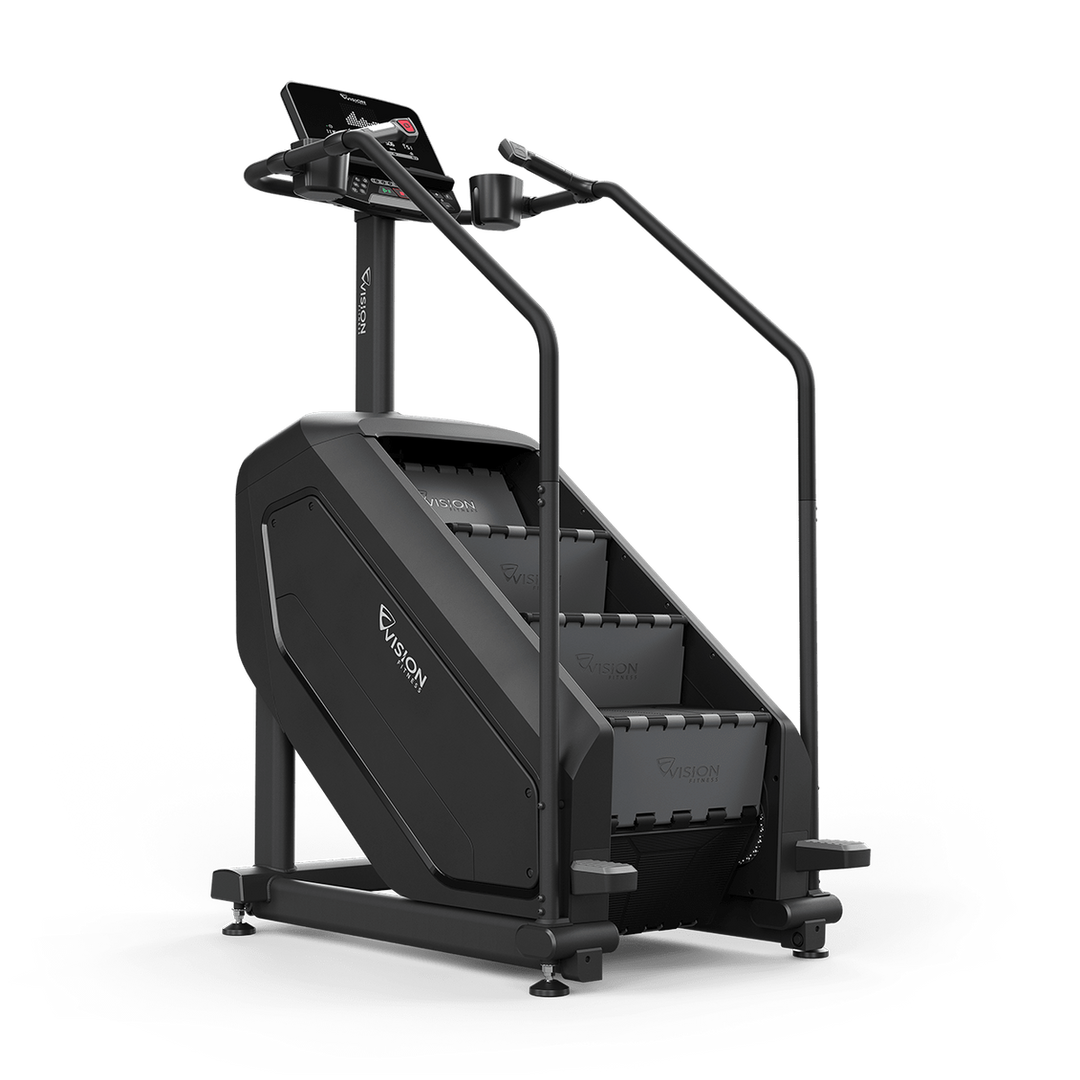

Vision Fitness Summit Stairclimber – front right 3/4 view with console and bottle holders

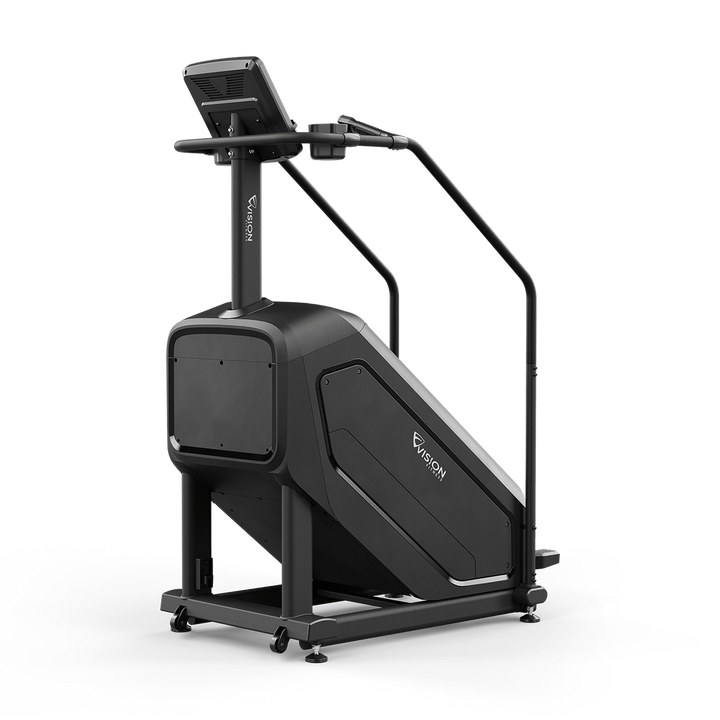

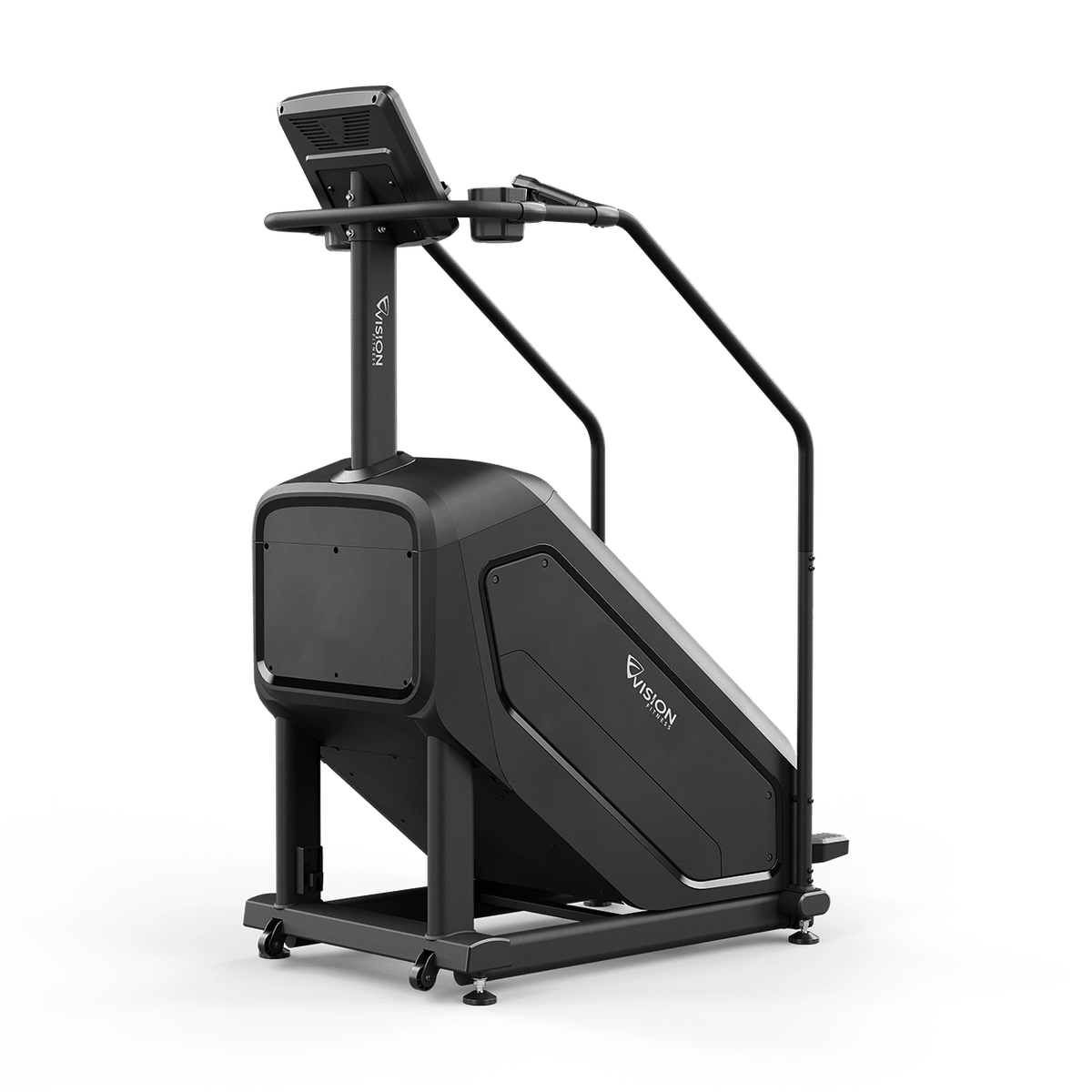

Vision Fitness Summit Stairclimber – rear right 3/4 view

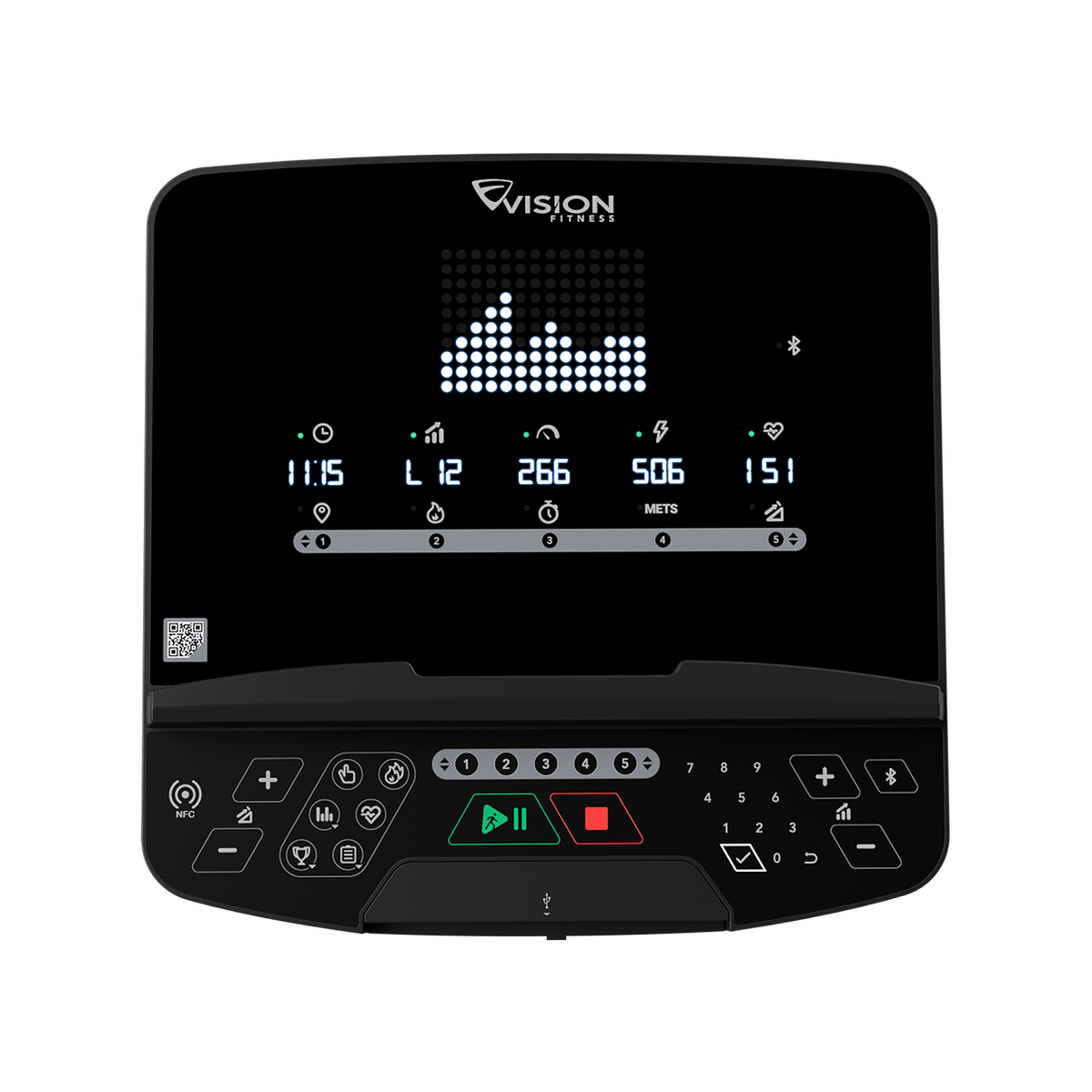

Vision Fitness Summit DLED console with dot-matrix workout profile and keypad
Vision Fitness ENT16 16″ touchscreen console – home screen
Vision Fitness Summit Stairclimber – front 3/4 view of the commercial stair climber
Vision Fitness Summit Stairclimber – side profile showing the stair angle and handrails
Vision Fitness Summit Stairclimber – front right 3/4 view with console and bottle holders
Vision Fitness Summit Stairclimber – rear right 3/4 view
Vision Fitness Summit DLED console with dot-matrix workout profile and keypad
Vision Fitness ENT16 16″ touchscreen console – home screen
Vision Fitness

Vision Fitness Summit Stairclimber

$6,499.00
/
Delivery & pickup — showroom pickup, white-glove delivery (quoted by address), or freight when quoted.
Financing available Ask about monthly payments
Delivery & install White-glove — quoted for your address
Try it in our showroom Visit our Wichita showroom
Local since 1990 Setup, service & repair
  • Not Currently On Display
Request a Quote
Request a Quote Call 316-681-2527

Prefer to talk first? Call 316-681-2527 — local showroom & white-glove delivery (quoted by address).

Console

The Vision Summit Stairclimber is a commercial stair climber with a low step-on height and 25 magnetic resistance levels, so almost anyone can start climbing at a comfortable pace. Infrared user detection, dual braking and an E-stop keep every workout secure. Choose a DLED console or a 16″ touchscreen. It isn’t on our floor right now, but we can order it for you.

Key Features

  • Secure, confident workouts: infrared user detection stops the stairs when no user is detected or an object enters the step area, with speed control, dual braking, and an E-stop.
  • Easy to start: a large, open platform and a low 9.8″ step-on height, with 25 magnetic resistance levels for simple adjustments.
  • Balance and stability: full-length handlebars with contact and telemetric heart rate give a secure grip at any pace.
  • Built for busy facilities: sweat-resistant shroud helps protect internal components from corrosion, with an industrial-grade drive chain and belt.
  • Service made easy: quick-release cover, easy-access service compartment, and one-sided internal components speed up maintenance.
  • Space-conscious: a 55.8″ × 32.4″ footprint with a 400 lb user capacity, plus 2 water bottle holders and a tablet holder.

Console Options

  • DLED Console: 14 × 10 dot-matrix workout profile with 22 numeric LEDs, eight workout types including go, manual, fat burn, intervals, target heart rate and fitness tests, plus Bluetooth connection to the Vision Fitness app, heart rate devices and FTMS apps.

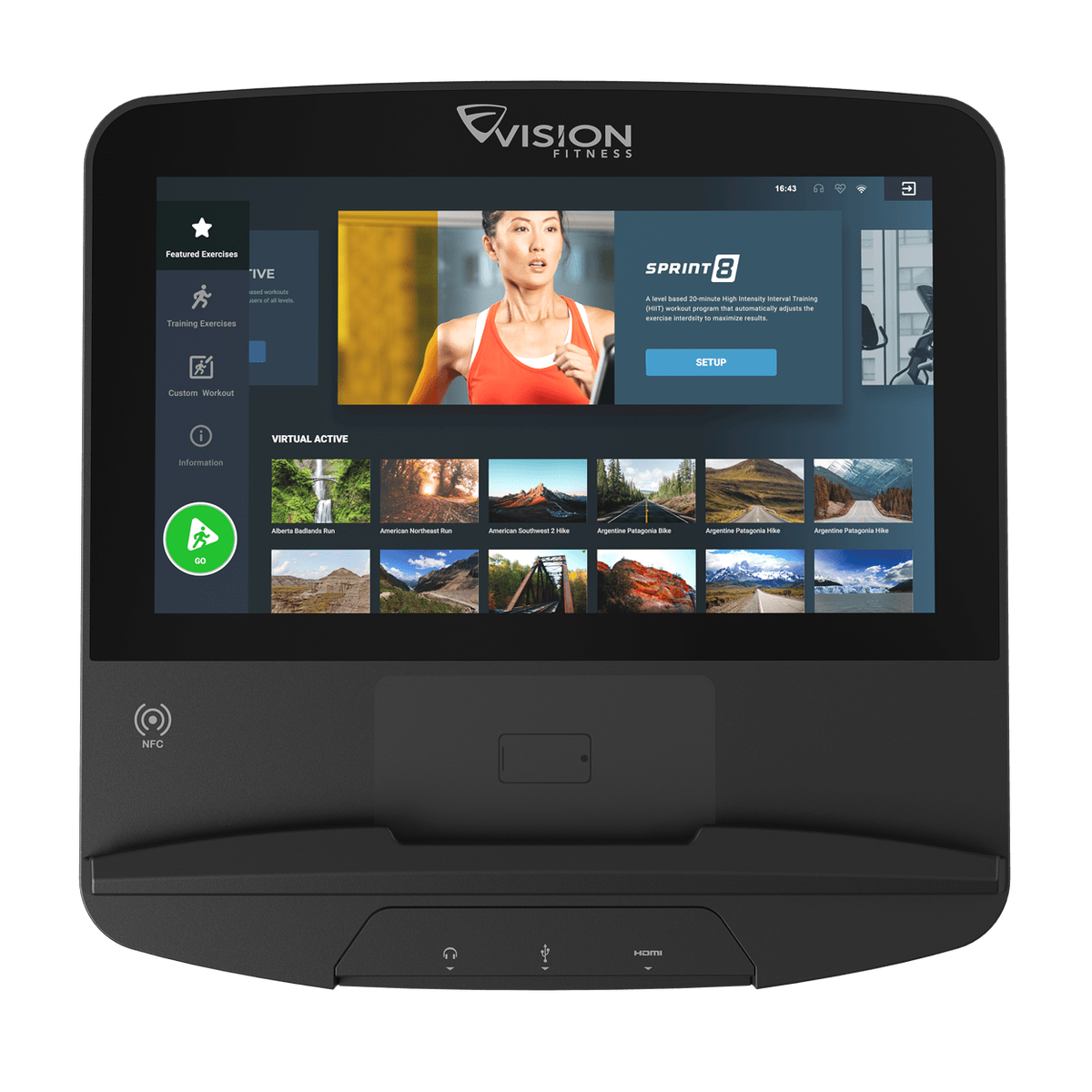

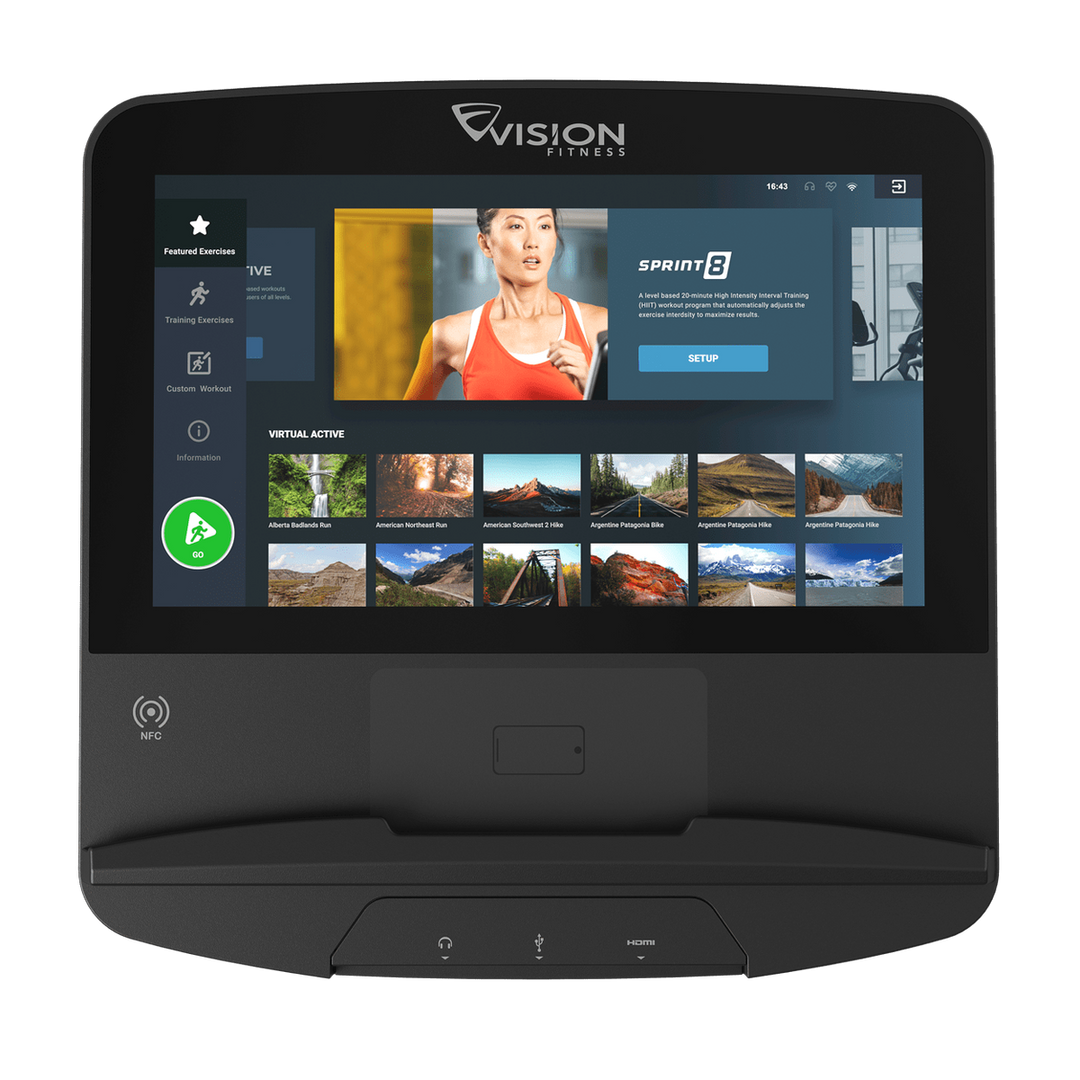

  • 16″ Touchscreen (ENT16): 16″ class capacitive touchscreen with 25 languages, WiFi, HDMI in for screen casting, Bluetooth, USB-A, and 12 built-in workouts. An analog or digital TV tuner is optional.

Warranty

  • Commercial use: Frame 7 years; parts and console 5 years; labor 2 years; wear items 90 days.

What's Included

  • Two water bottle holders and a tablet holder

Try It, Get It Delivered, Keep It Running

  • See it in our Wichita showroom: Ask us about similar models on our floor to try today.
  • White-glove delivery & installation: Wichita and beyond, quoted by address. Delivery & installation details.
  • In-store pickup: available on request.
  • Service & repair: available from our team. See Service & Repair.
  • Financing: ask about options. See our financing page.

Request a Quote above, or call 316-681-2527, for pricing, availability and a delivery quote to your address.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Warranty (Commercial): Frame 7 years, parts and console 5 years, labor 2 years, wear items 90 days

Model: V-SUM-SC-F

Assembled Dimensions: 55.8” L x 32.4” W x 81.5” H (141.8 x 82.4 x 207 cm)

Assembled Weight: 407 lbs. (185 kg)

Shipping Weight: 529 lbs. (240 kg)

Max User Weight: 400 lbs. (182 kg)

Step Dimensions: 11” x 18” x 8” (27.3 x 45.9 x 19.8 cm)

Step-On Height: 9.8” (25 cm)

Drive System: ECB (magnetic) with industrial-grade drive chain and belt

Resistance Levels: 0–25

Resistance Range: 25–169 steps/min

Handlebar Design: Full-length handlebars

Heart Rate: Contact and telemetric

Auto-Stop: Frame-mounted infrared and user detection

Recommended Ceiling Height: 10 ft (3 m)

Power Requirements: 100–240 V, 50/60 Hz AC

Levelers: 4

Serviceability: Quick-replace repair shield cover, quick-release cover, easy-access service compartment

Extras: 2 water bottle holders, tablet holder

Console Options: DLED Console; 16” Touchscreen (ENT16)

DLED Display: 14 x 10 dot-matrix workout profile LEDs and 22 numeric LEDs

DLED Programs: Go, manual, fat burn, intervals, constant watts, goal, target heart rate, fitness tests

DLED Workout Feedback: 5 toggle displays: time and distance, resistance level and calories, steps/min and RPM, watts and METs, heart rate and incline

DLED Connectivity: Bluetooth (Vision Fitness app, heart rate device, FTMS apps); NFC one-tap to the Vision Fitness app; USB-A for charging and software updates; WiFi optional for Vision Asset Management

DLED Languages: 9 (English, German, French, Italian, Spanish, Dutch, Portuguese, Russian, Polish)

ENT16 Display: 16” (41 cm) class capacitive touchscreen LCD

ENT16 Programs: Manual, interval training, fat burn, HR weight loss, HR interval, constant watts, interval watts, hill watts, time goal, distance goal, calorie goal, random

ENT16 Connectivity: WiFi; Bluetooth (heart rate, headphones, FTMS); NFC; USB-A for charging, media and software updates; HDMI in for screen casting

ENT16 Languages: 25 console languages

ENT16 TV: Optional analog/digital TV and Pro:Idiom via coax

Standby Power: Console off 0.3 W or less; standby 0.5 W or less
