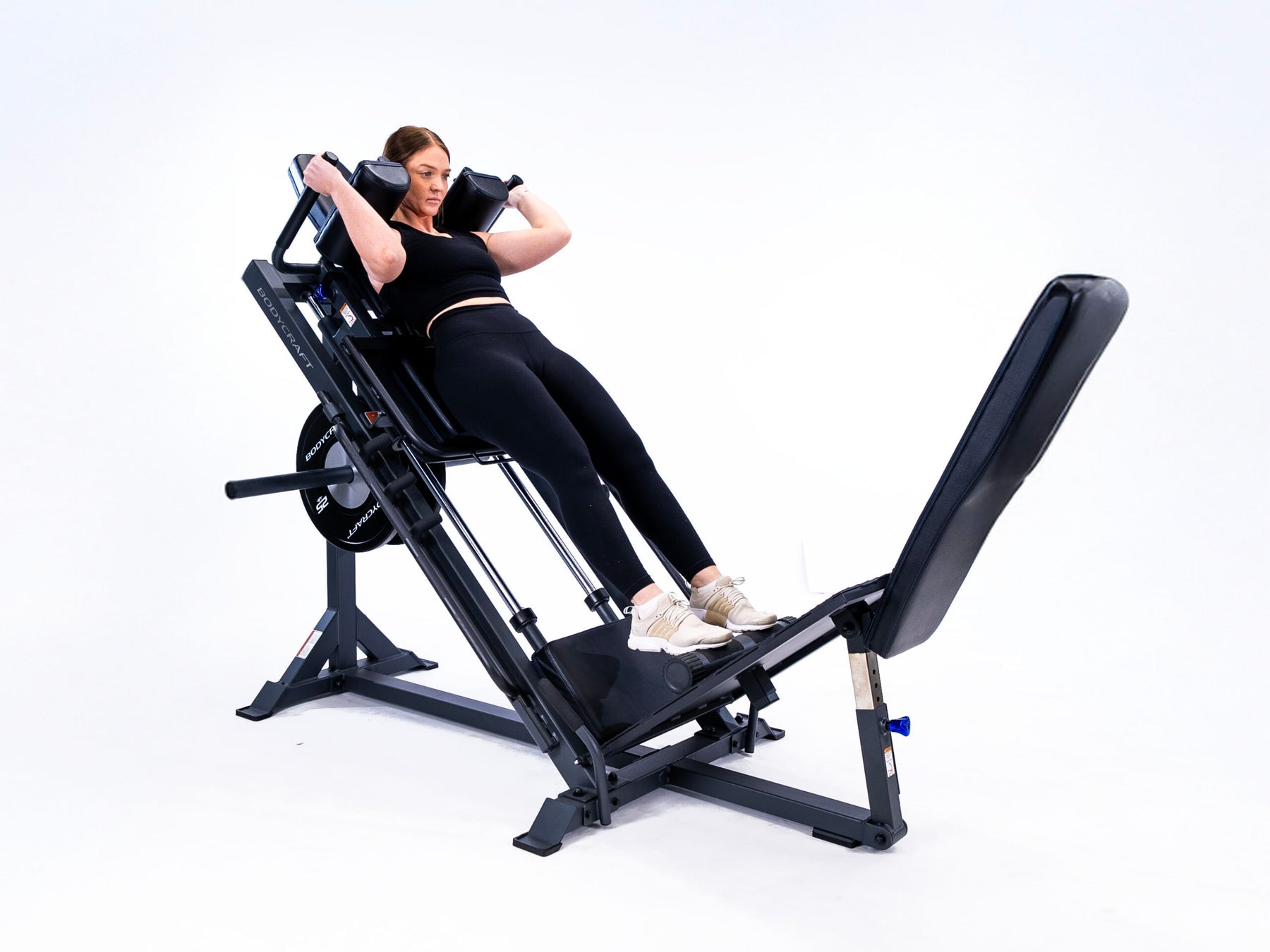

Bodycraft F760 – model performing a hack squat under the shoulder pads
Bodycraft F760 – model performing a calf raise
Bodycraft F760 – model performing a donkey squat
Bodycraft F760 Leg Press / Hack Squat loaded with weight plates
Bodycraft F760 – gas-assisted lower foot plate
Bodycraft F760 – shoulder pad travel, side view

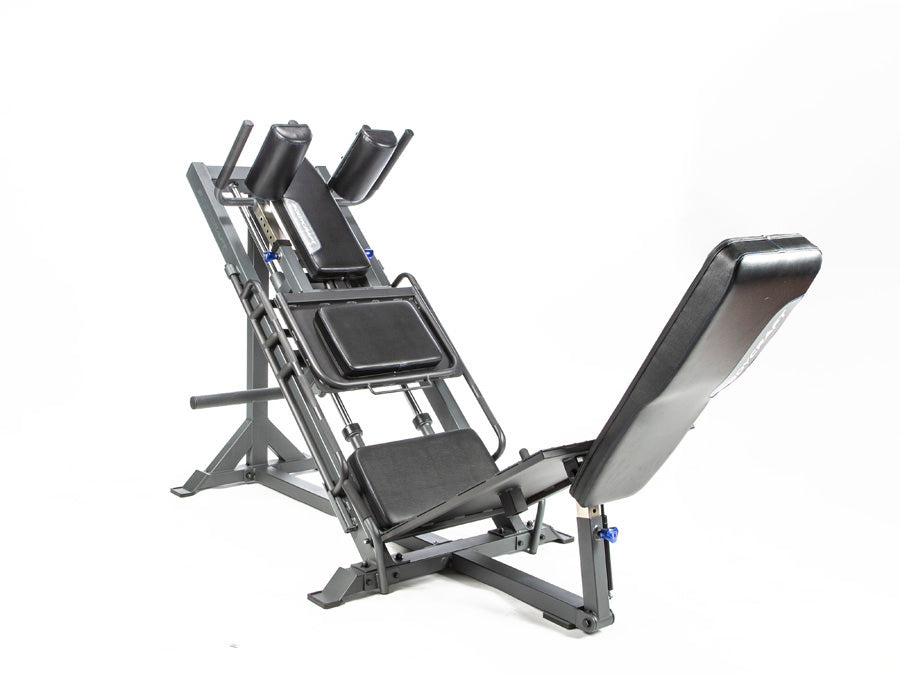

Bodycraft F760 – back pad flipped up for hack squat
Bodycraft F760 Linear Bearing Leg Press / Hack Squat – front 3/4 view
Bodycraft F760 Leg Press / Hack Squat – rear 3/4 view
Bodycraft F760 – model performing a leg press
Bodycraft F760 – model performing a hack squat under the shoulder pads
Bodycraft F760 – model performing a calf raise
Bodycraft F760 – model performing a donkey squat
Bodycraft F760 Leg Press / Hack Squat loaded with weight plates
Bodycraft F760 – gas-assisted lower foot plate
Bodycraft F760 – shoulder pad travel, side view
Bodycraft F760 – back pad flipped up for hack squat
Bodycraft

Bodycraft F760 Linear Bearing Leg Press / Hack Squat

$2,599.00
/
Delivery & pickup — showroom pickup, white-glove delivery (quoted by address), or freight when quoted.
Financing available Ask about monthly payments
Delivery & install White-glove — quoted for your address
Try it in our showroom 16 strength items on our floor
Local since 1990 Setup, service & repair
  • On Display
Request a Quote
Request a Quote Call 316-681-2527

Prefer to talk first? Call 316-681-2527 — local showroom & white-glove delivery (quoted by address).

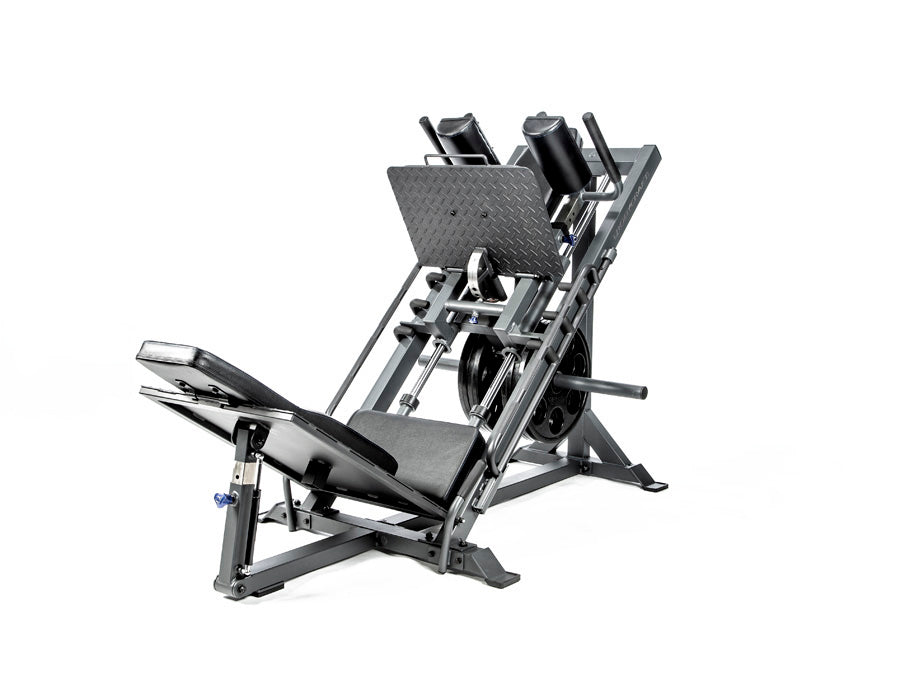

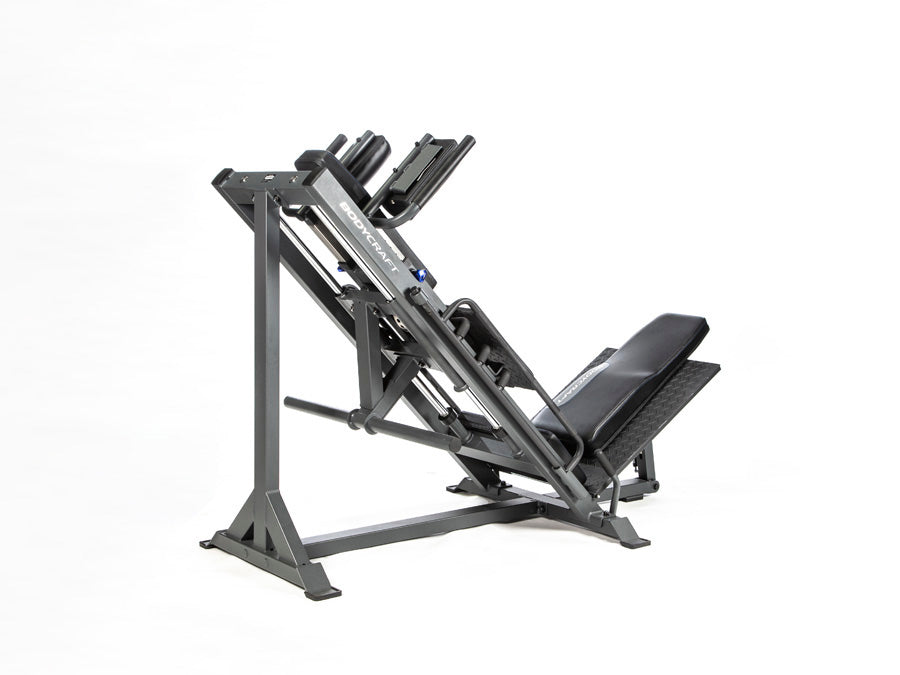

The Bodycraft F760 Linear Bearing Leg Press / Hack Squat is a plate-loaded machine for leg press, hack squat, donkey squat and calf raises. Its carriage rides on industrial-grade linear bearings and 1.25″ case-hardened steel guide rods, and the whole machine is rated to 1,000 lb. It’s on our floor, so stop in and try it.

Key Features

  • Linear-bearing carriage: industrial-grade LM30 linear bearings on 1.25″ case-hardened steel solid guide rods give a smooth, consistent stroke; 75 lb starting weight.

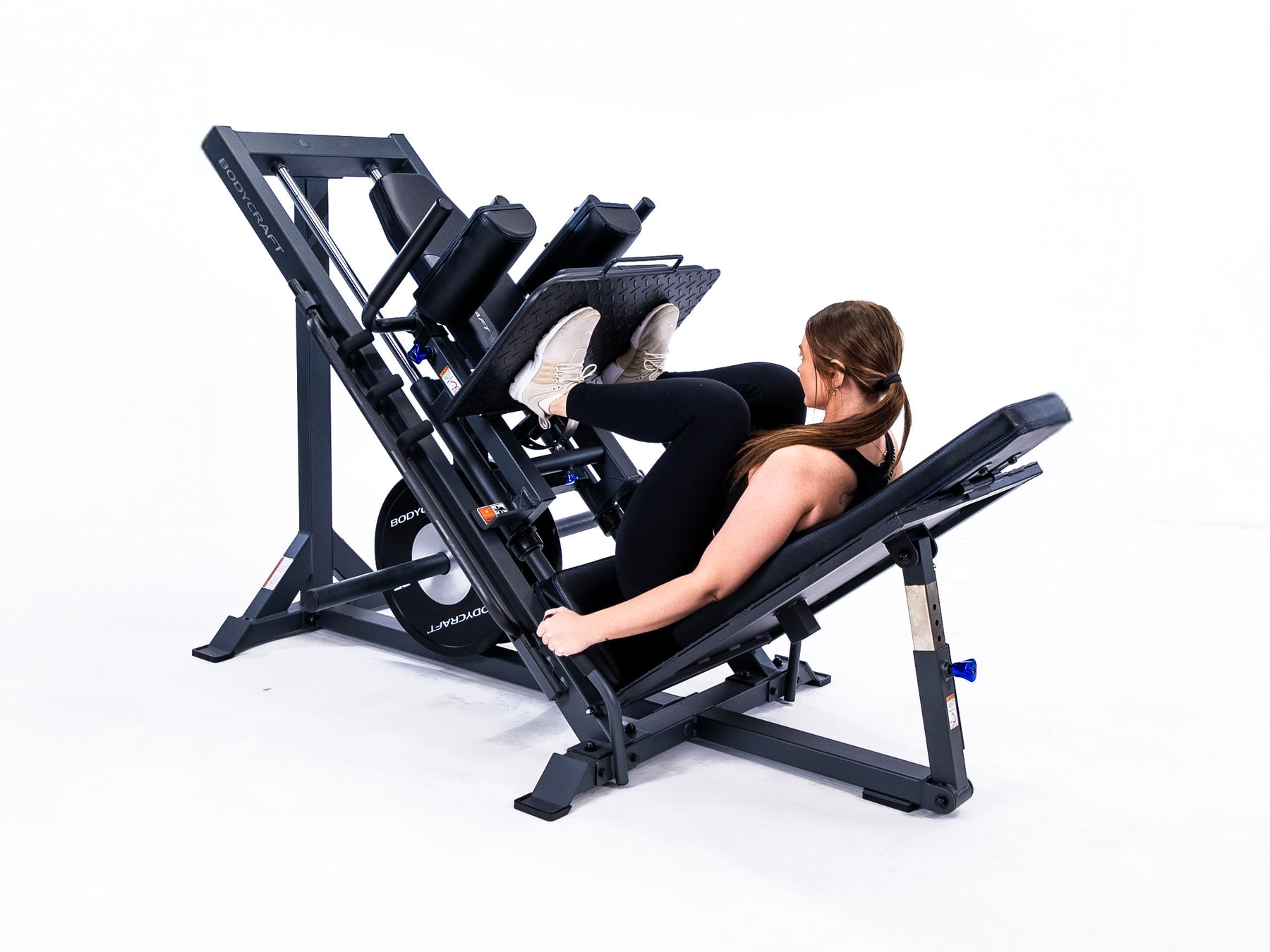

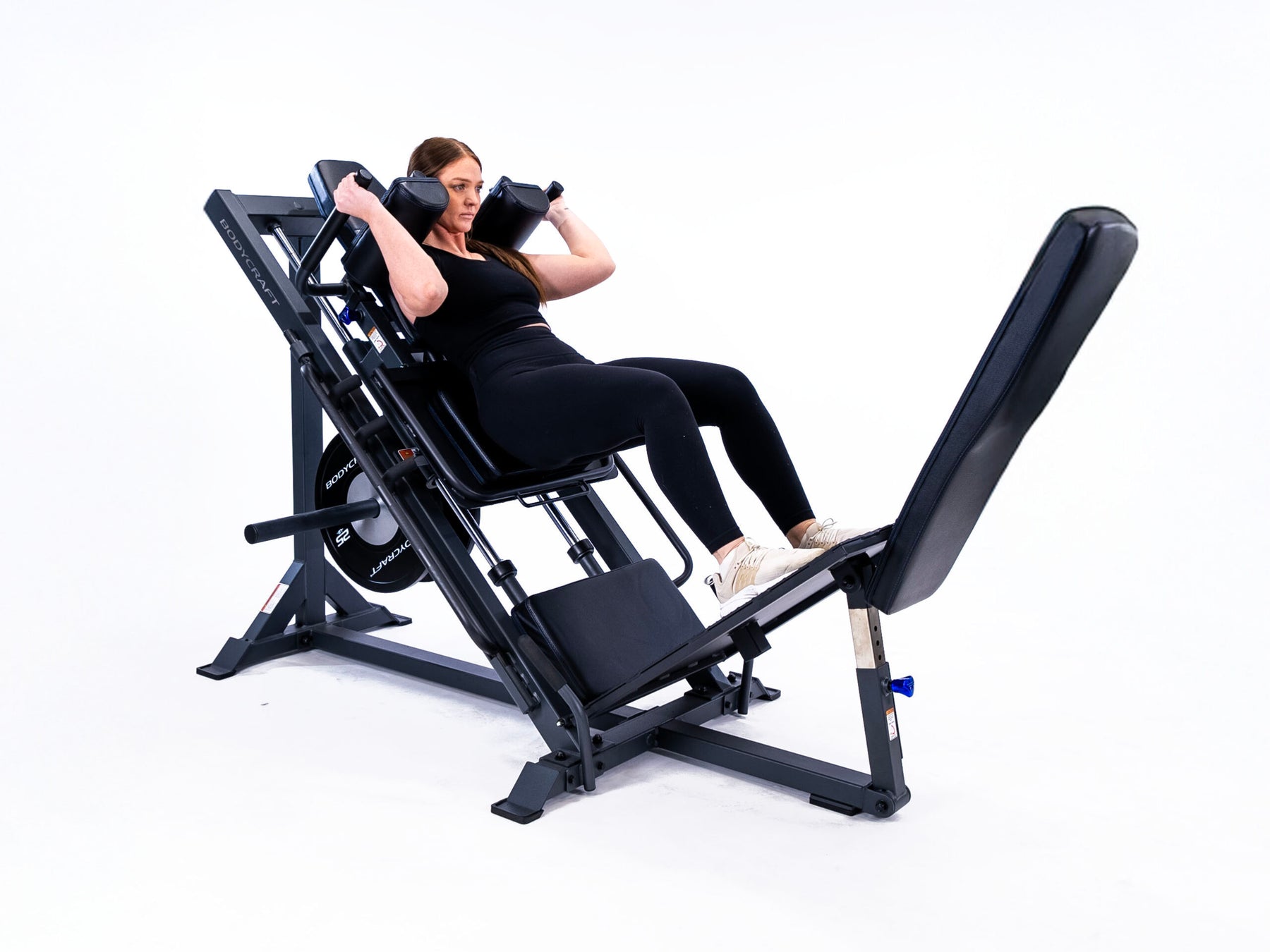

  • Leg press and hack squat: leg press range of 23″ to 64″ and squat range of 36″ to 79″. The lumbar-support back pad flips up on a hinge for hack squats.

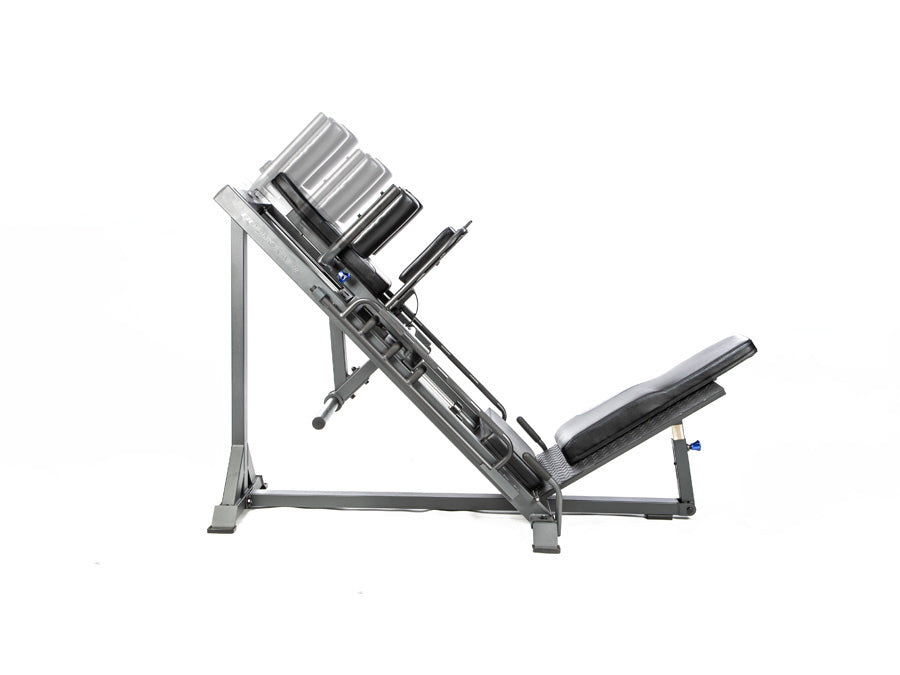

  • Adjustable shoulder pads: oversized pads with 12″ of travel and 13 locking positions fit a wider range of users.

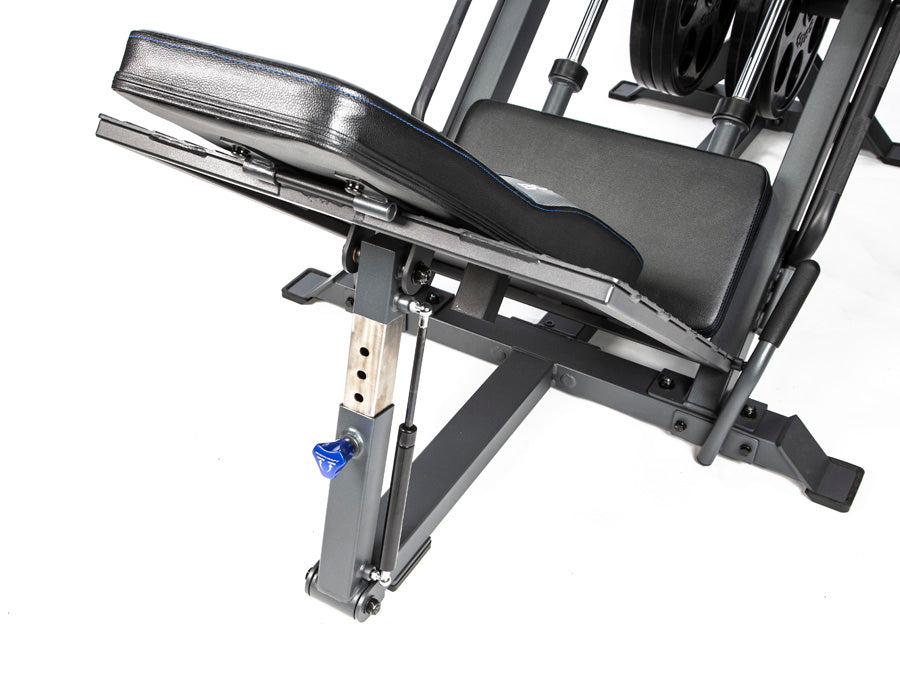

  • Adjustable foot plates: the 16″ × 24″ upper plate adjusts to five angles from 75° to 135°; the 29.5″ × 24″ lower plate has five angles and gas-assisted adjustment.

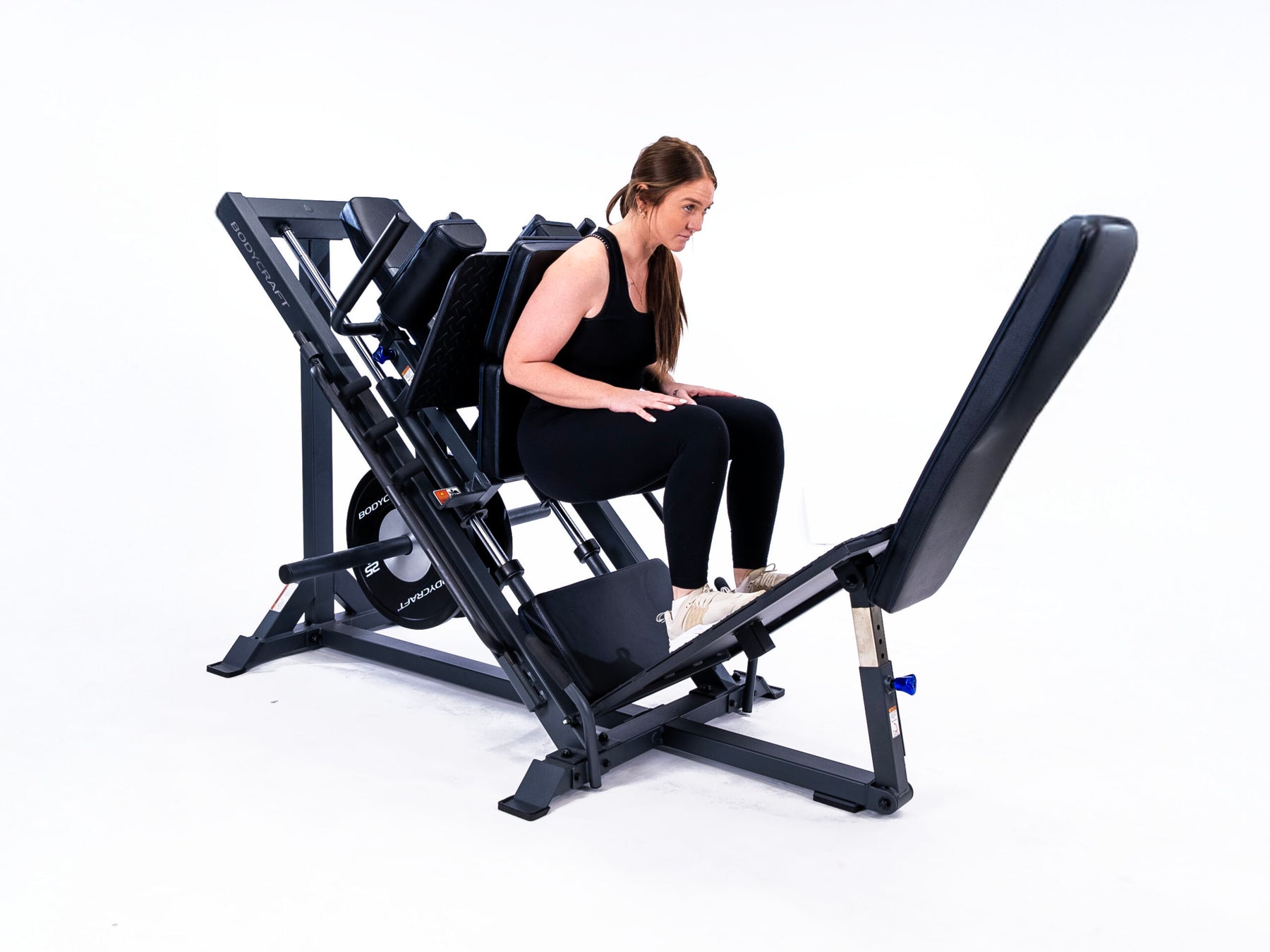

  • Donkey squat pad and calf block: the donkey squat pad lets you squat and do calf raises with lower-lumbar support, relieving spinal compression; a removable 3″ calf block works with the pad or shoulder pads.

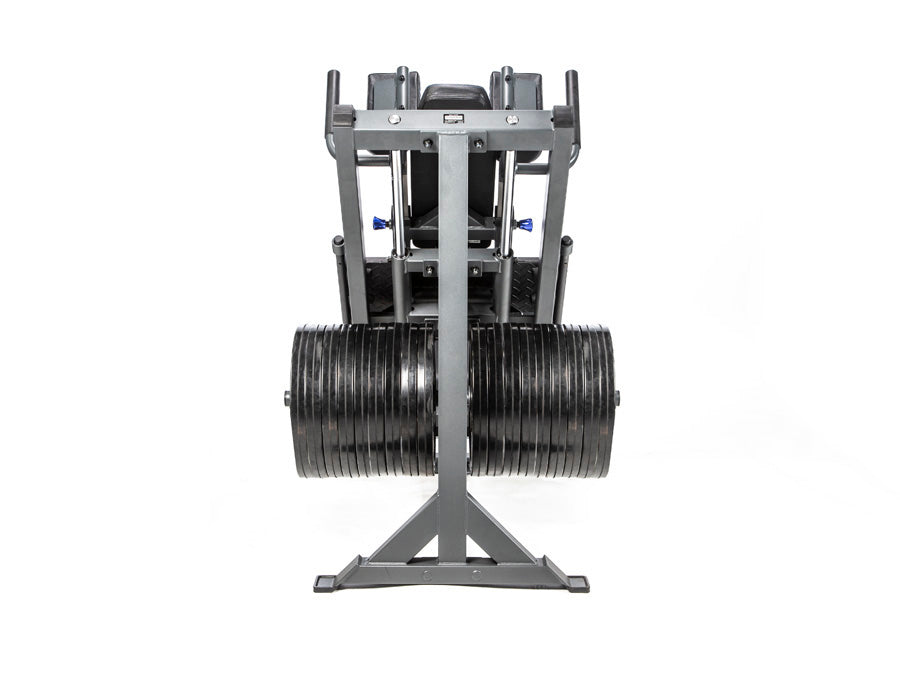

  • Space-saving plate loading: weight plates load under the carriage, with long weight holders that store up to nine 1.75″ plates per side.
  • Built to last: heavy-gauge 2″ × 3″ steel tubing and ¼″ plate steel, with double-stitched upholstery over high-density foam.

Warranty

  • Home use: Lifetime warranty on every part of the F760 for the original owner, in-home use only (excludes normal wear and tear).
  • Commercial use: Frame 10 years; parts 2 years; wear items 6 months (up to 5 hrs/day, non-paying facilities; excludes normal wear and tear).

Try It, Get It Delivered, Keep It Running

  • See it in our Wichita showroom: This model is on our floor. Stop in and try it.
  • White-glove delivery & installation: Wichita and beyond, quoted by address. Delivery & installation details.
  • In-store pickup: available on request.
  • Service & repair: available from our team. See Service & Repair.
  • Financing: ask about options. See our financing page.

Request a Quote above, or call 316-681-2527, for pricing, availability and a delivery quote to your address.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Warranty (Home): Lifetime, every part, original owner, in-home use (excludes normal wear and tear)

Warranty (Commercial): Frame 10 years, parts 2 years, wear items 6 months (5 hrs/day, non-paying facilities)

Weight Capacity: Rated for up to 1,000 lbs.

Dimensions: 82.5” L x 41” W x 50.2–59.4” H (add 12” for user working space)

Weight: 411 lbs.

Leg Press Range: 23” at the lowest point to 64” at the highest point

Squat Range: 36” at the lowest point to 79” at the highest point

Upper Foot Plate: 24” x 16”; adjusts to 5 angles from 75° to 135°

Lower Foot Plate: 29.5” x 24”; 5 angles, gas-assisted

Shoulder Pads: Fully adjustable, 12” of travel, 13 locking positions

Back Pad: Lumbar support; flips up on a hinge for hack squat

Donkey Squat Pad / Calf Block: Donkey squat pad for squats and calf raises with lower-lumbar support; removable 3” round calf block

Bearings: Industrial-grade LM30 linear bearings

Guide Rods: 1.25” case-hardened steel solid guide rods

Carriage Weight: 75 lbs. starting weight

Plate Loading: Under the carriage; long weight holders

Construction: Heavy-gauge 2” x 3” steel tubing and 1/4” plate steel

Pads: Double-stitched heavy-duty upholstery and high-density foam

Finish: Diamond Gray and black electrostatic powder-coat

Shipping: Truck (LTL, curbside delivery); 3 boxes: 65” x 30” x 10” (124 lbs.), 51” x 25” x 8” (159 lbs.), 42” x 29” x 9.5” (127 lbs.); 410 lbs. total, not including pallet
